Catalog




15° Wire Coil Collation for Framing Nailers including:
Hitachi, MAX, Bostitch, Senco, and others.
Flat Head BNS for OSB, Plywood, SYP, Oak, Fir, Spruce, and other NON-Treated Lumber Applications
Interior Use
Item Number Shear Value in lbs.
(Est. Avg)
Withdrawal in lbs.
(Est. Avg)
Inches Length MM Length Inches Dia. MM Dia. Head Insert Coating
WCNS134113YZSP 1239 350 1 3/4" 44.4 0.113 2.87 #2 PH #2 SQ YZ
WCNS200113YZSP 1250 427 2" 50.8 0.113 2.87 #2 PH #2 SQ YZ
WCNS214113YZSQ 1218 525 2-1/4" 57.1 0.113 2.87 #2 SQ YZ
WCNS214113YZPH 1218 525 2-1/4" 57.1 0.113 2.87 #2 PH YZ
WCNS214113YZSP 1218 525 2-1/4" 57.1 0.113 2.87 #2 PH #2 SQ YZ
WCNS212113YZSP 1329 534 2-1/2" 63.5 0.113 2.87 #2 PH #2 SQ YZ
WCNS212113YZPH 1329 534 2-1/2" 63.5 0.113 2.87 #2 PH YZ
WCNS212113YZSQ 1329 534 2-1/2" 63.5 0.113 2.87 #2 SQ YZ
WCNS300113YZSP NA NA 3" 76.2 0.113 2.87 #2 PH #2 SQ YZ
WCNS300120YZSP 1516 600 3" 76.2 0.120 3.05 #2 PH #2 SQ YZ
WCNS300131YZSP 1800 800 3" 76.2 0.131 3.33 #2 PH #2 SQ YZ
WCNS312131YZSP 1800 900 3-1/2" 88.9 0.131 3.33 #2 PH #2 SQ YZ
WCNS200113YZSQH 1250 427 2" 50.8 0.113 2.87 #2 SQ YZ
WCNS214113YZSQH 1218 525 2-1/4" 57.1 0.113 2.87 #2 SQ YZ
WCNS212113YZSQH 1329 534 2-1/2" 63.5 0.113 2.87 #2 SQ YZ
Combo Head BNS for Soft Composites and ACQ, CCA, MCQ, and all other Pressure Treated Lumber
Exterior Use
PTWCNS214CSQ 1516 525 2-1/4" 57.1 0.120 3.05 #2 SQ PT2000®
Flat Head BNS for ACQ, CCA, MCQ, and all other Pressure Treated Lumber
Exterior Use
PTWCNS134113SQ 1239 350 1 3/4" 44.4 0.113 2.87 #2 SQ PT2000®
PTWCNS200113SQ 1250 427 2" 50.8 0.113 2.87 #2 SQ PT2000®
PTWCNS212113SQ 1329 534 2-1/2" 63.5 0.113 2.87 #2 SQ PT2000®

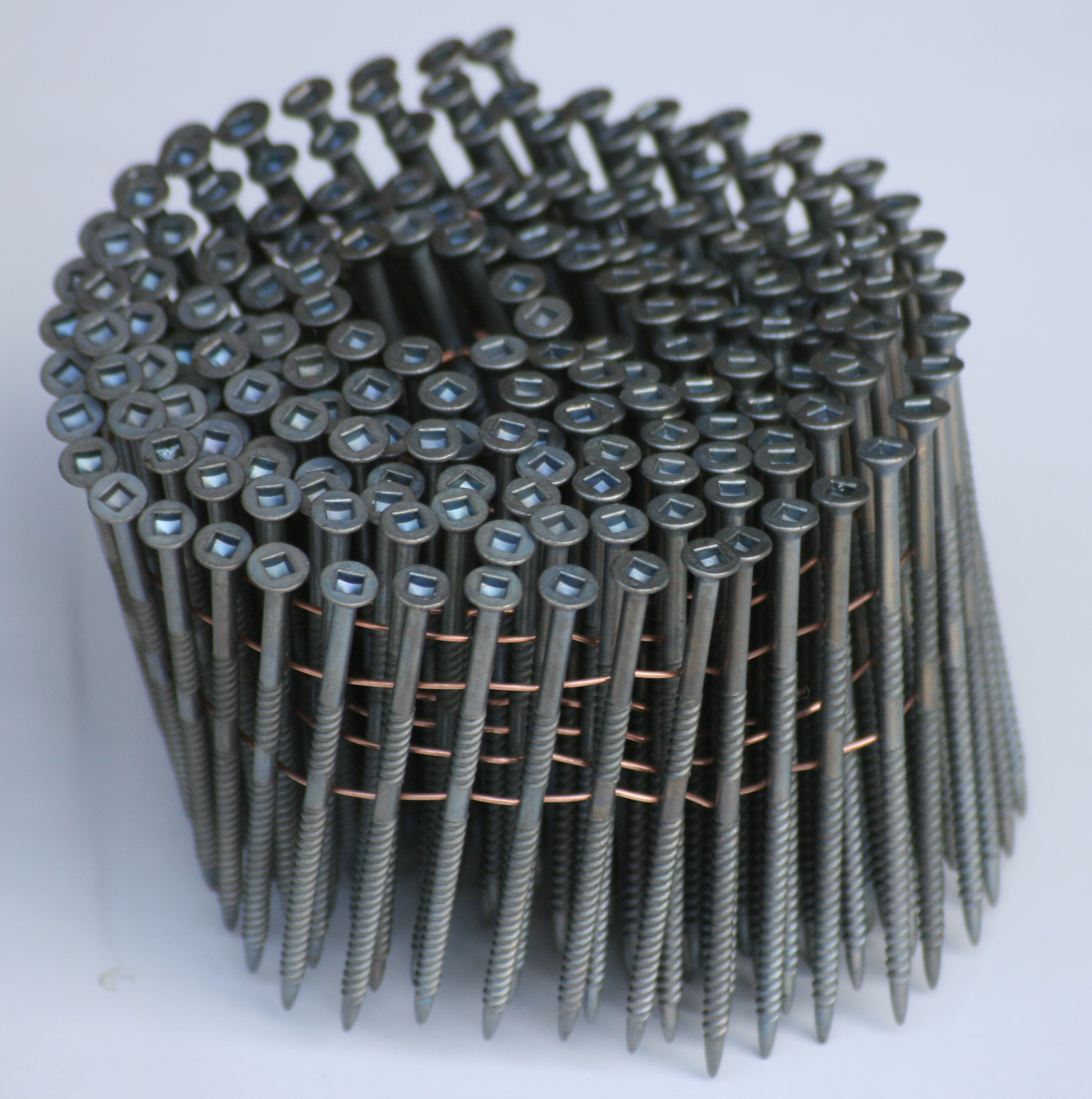

PTWCNS300113SQ 1289 573 3" 76.2 0.113 2.87 #2 SQ PT2000®

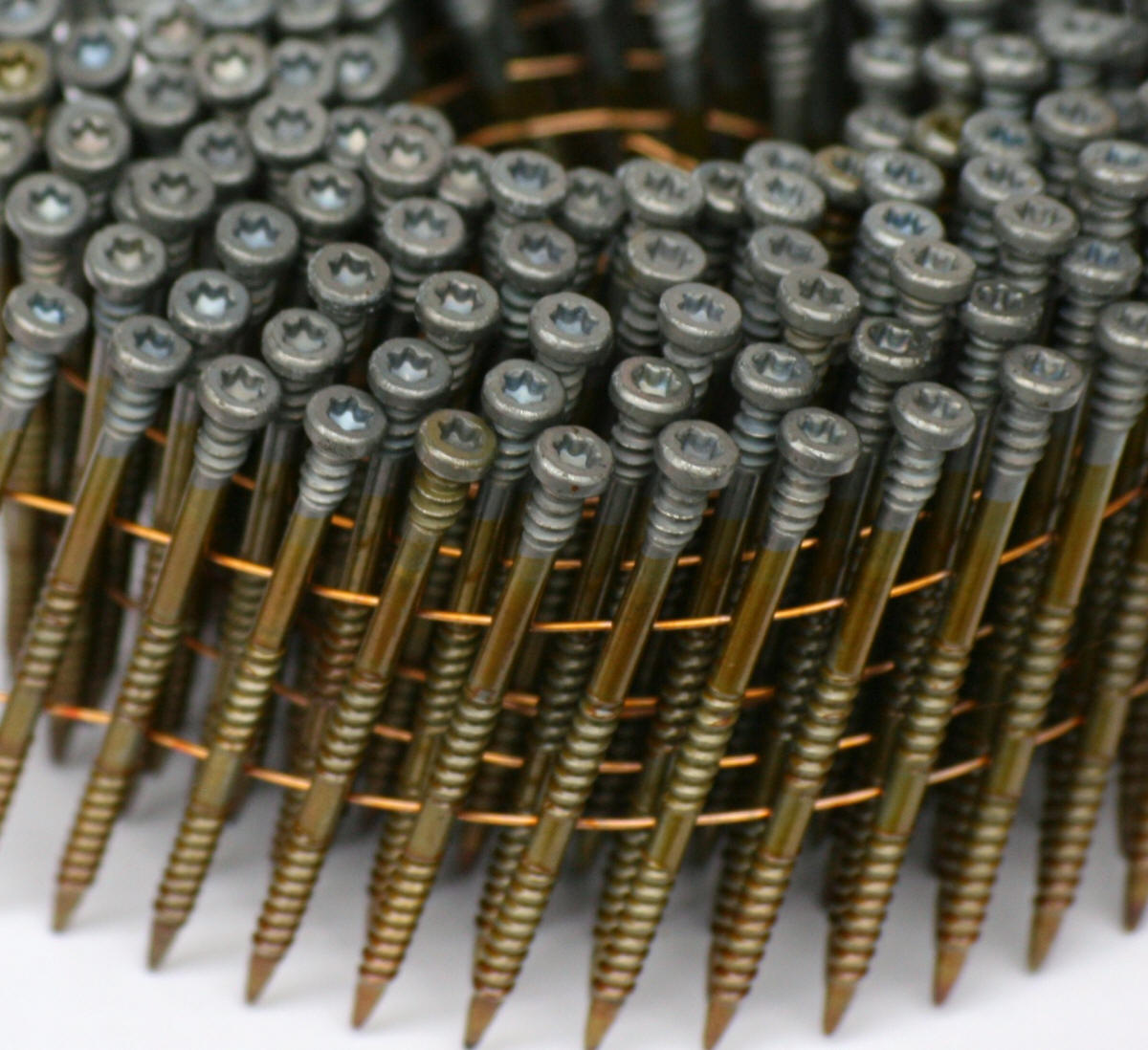

Trim Head BNS for Harder Composites or Wood materials including all Pressure Treated Lumber
Exterior Use
PTWCNS214113TH 1218 525 2-1/4" 57.1 0.113 2.87 T-15 PT2000®
White Head - Trim Head BNS for White Trim (Composite or Wood) and all Pressure Treated Lumber
Exterior Use
PTWCNS214113THW 1218 525 2-1/4" 57.1 0.113 2.87 T-15 PT2000®

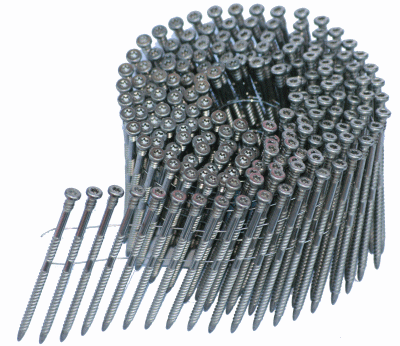

316 Stainless Steel Trim Head BNS for Softer Composite and all Pressure Treated Lumber
Exterior Use
SSWCNS300120TH NA NA 3" 76.2 0.120 3.05 T-15 316 St. Steel






YZ Coil

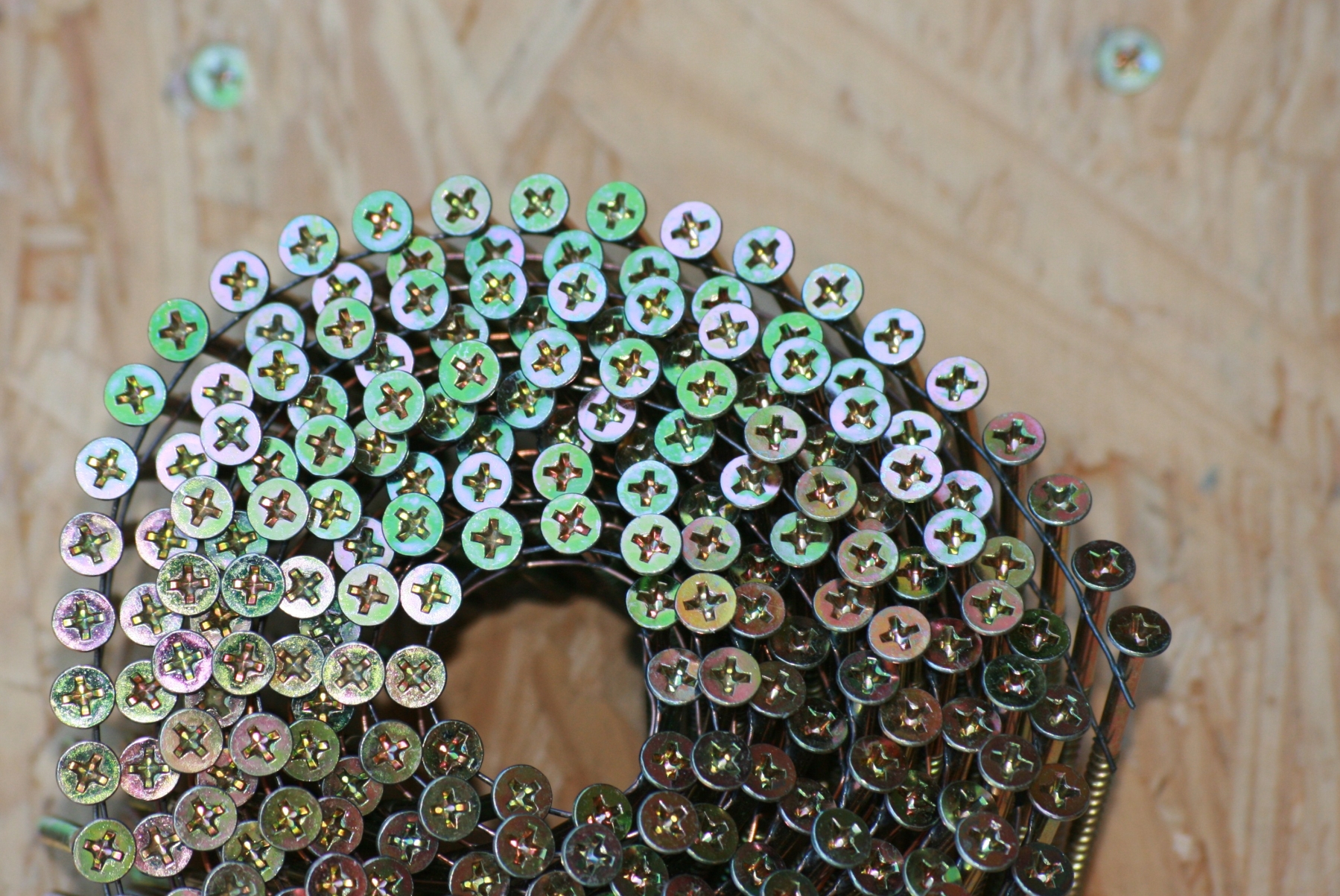

YZ Phillips Wire Coil









PT Wire Coil
PTWCNSTH
White Heads
Stainless Steel Wire Coil
