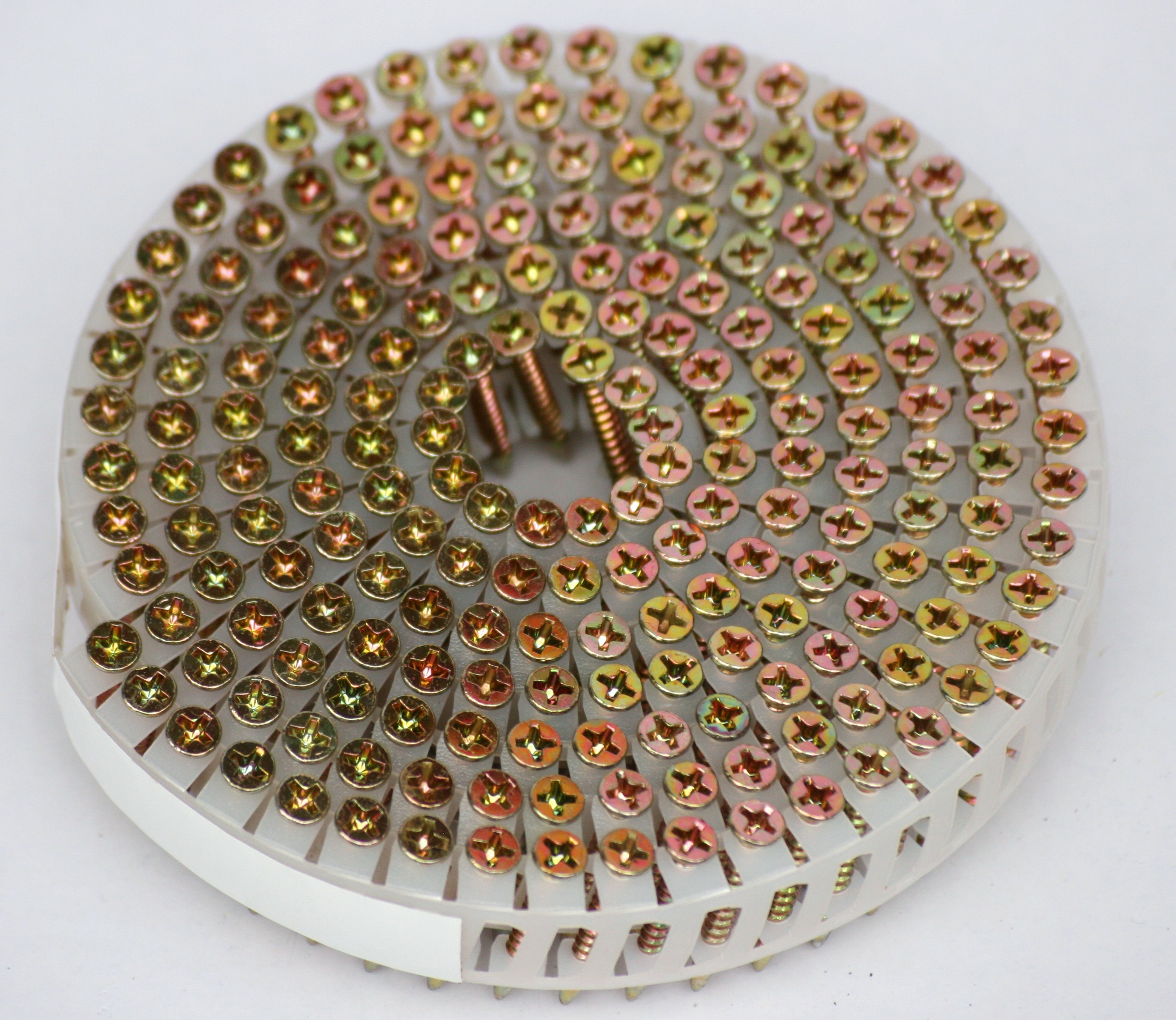

15° Plastic Sheet Coil Collation for Siding Nailers including: Hitachi, MAX, Bostitch, Senco, and others. |
||||||||
|
Flat Head YZ BNS
for Crate Tops
of OSB, Plywood,
SYP, Oak, Fir,
Spruce, and
other
NON-Treated
Lumber
applications /
Interior Use
Note: BNS of .113 Diameter are great for attaching many materials to Metal (12-16 gauge) joist or studs, etc. |
||||||||
| Item Number |
Shear
Value in lbs. (Est. Avg) |
Withdrawal in
lbs. (Est. Avg) |
Inches Length | MM Length | Inches Dia. | MM Dia. | Head Insert | Coating |
| HSNS114113YZPH | 1097 |
350 500 in 16ga |
1-1/4" | 31.75 | 0.113 | 2.870 | #2 PH | YZ |
| HSNS112113YZPH | 1097 |
350 500 in 16ga |
1-1/2" | 38.1 | 0.113 | 2.870 | #2 PH | YZ |
| Combo Head BNS for most Composite and Wood Fencing and Decking to Metal joist (12-16 gauge) / Exterior Use | ||||||||
| HSNS112113THC | 1097 |
350 500 in 16ga |
1-1/2" | 38.1 | 0.113 | 2.870 | T-15 | Cedar PPG |
| HSNS112113THT | 1097 |
350 500 in 16ga |

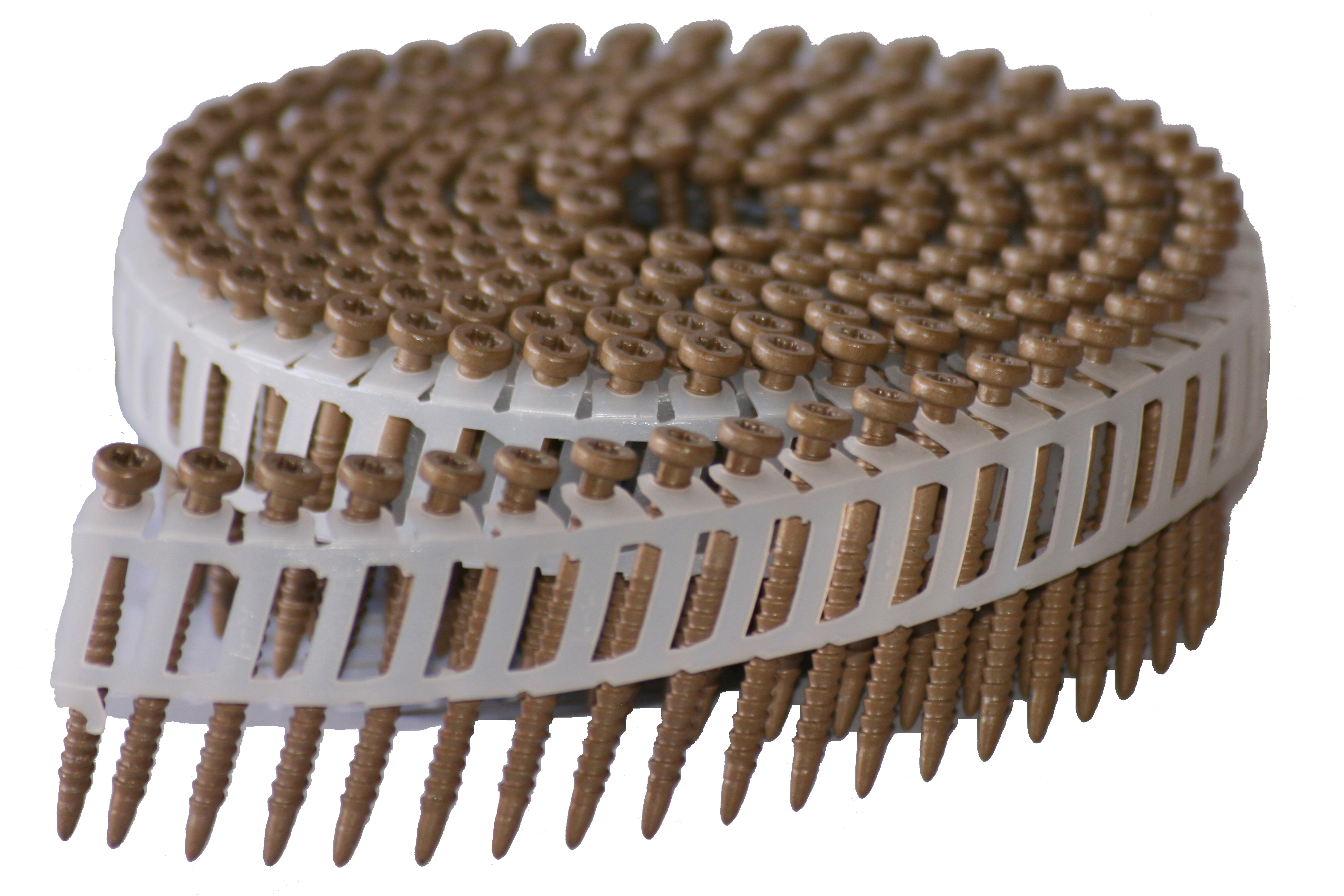

1-1/2" | 38.1 | 0.113 | 2.870 | T-15 | Tan PPG |
| Flat Head BNS for Concrete Boards, Composite and Wood Fencing and Decking to Metal joist (12-16 gauge) / Exterior Use | ||||||||
| HSNS112113PHG | 1097 |
350 500 in 16ga |

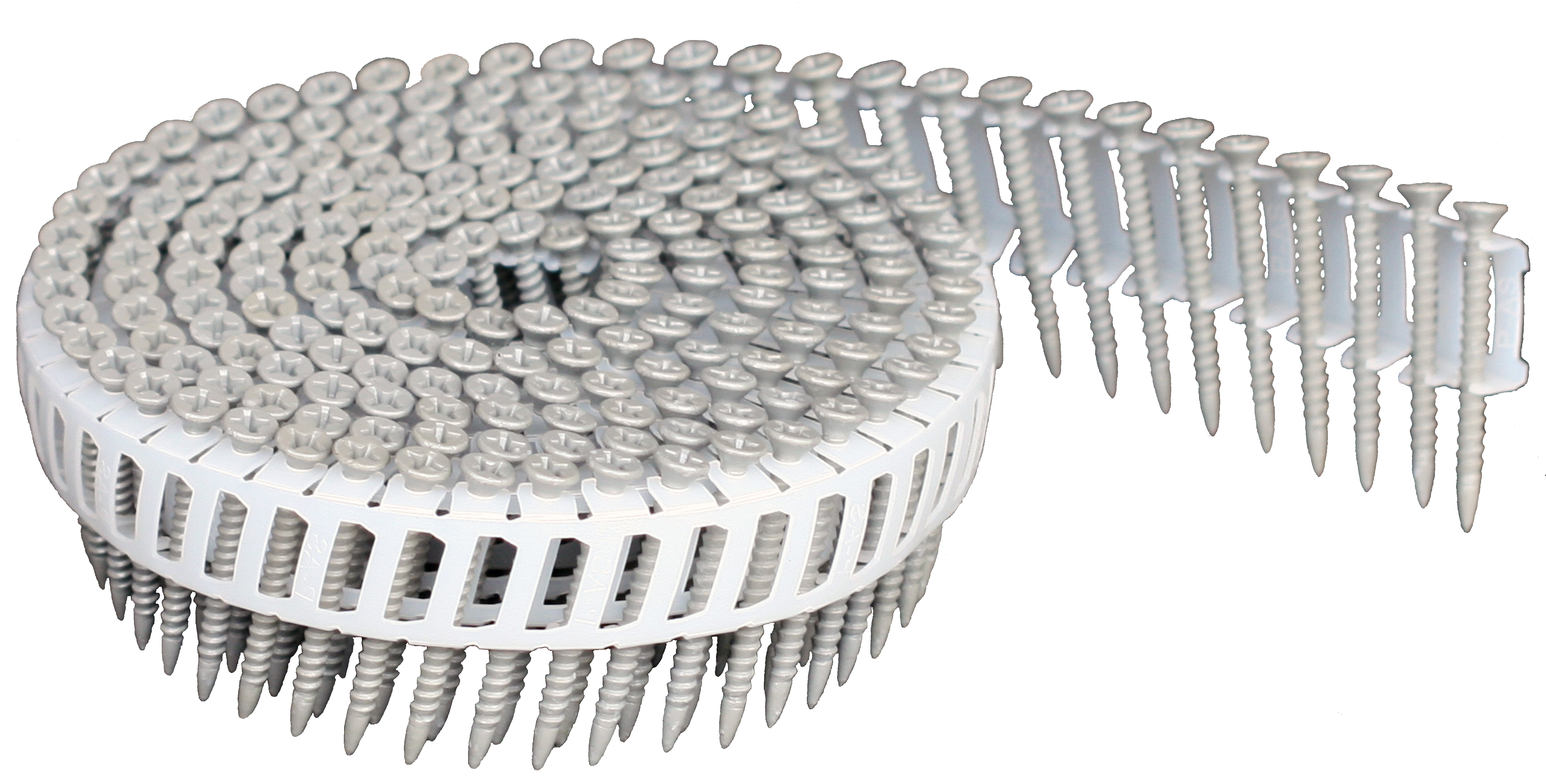

1-1/2" | 38.1 | 0.113 | 2.870 | #2 PH | Gray PPG |
| HSNS112113T15C | 1097 |
350 500 in 16ga |
1-1/2" | 38.1 | 0.113 | 2.870 | T-15 | Cedar PPG |
| Flat Head BNS for GeoDeck Composite Decking, PVC decking, all Wood Decking, Fencing, etc. / Exterior Use | ||||||||
| HSNS212113PSQC | 1329 | 534 | 2-1/2" | 63.5 | 0.113 | 2.870 | #1 SQ | Cedar PPG |
| HSNS212113PSQG | 1329 | 534 | 2-1/2" | 63.5 | 0.113 | 2.870 | #1 SQ | Gray PPG |

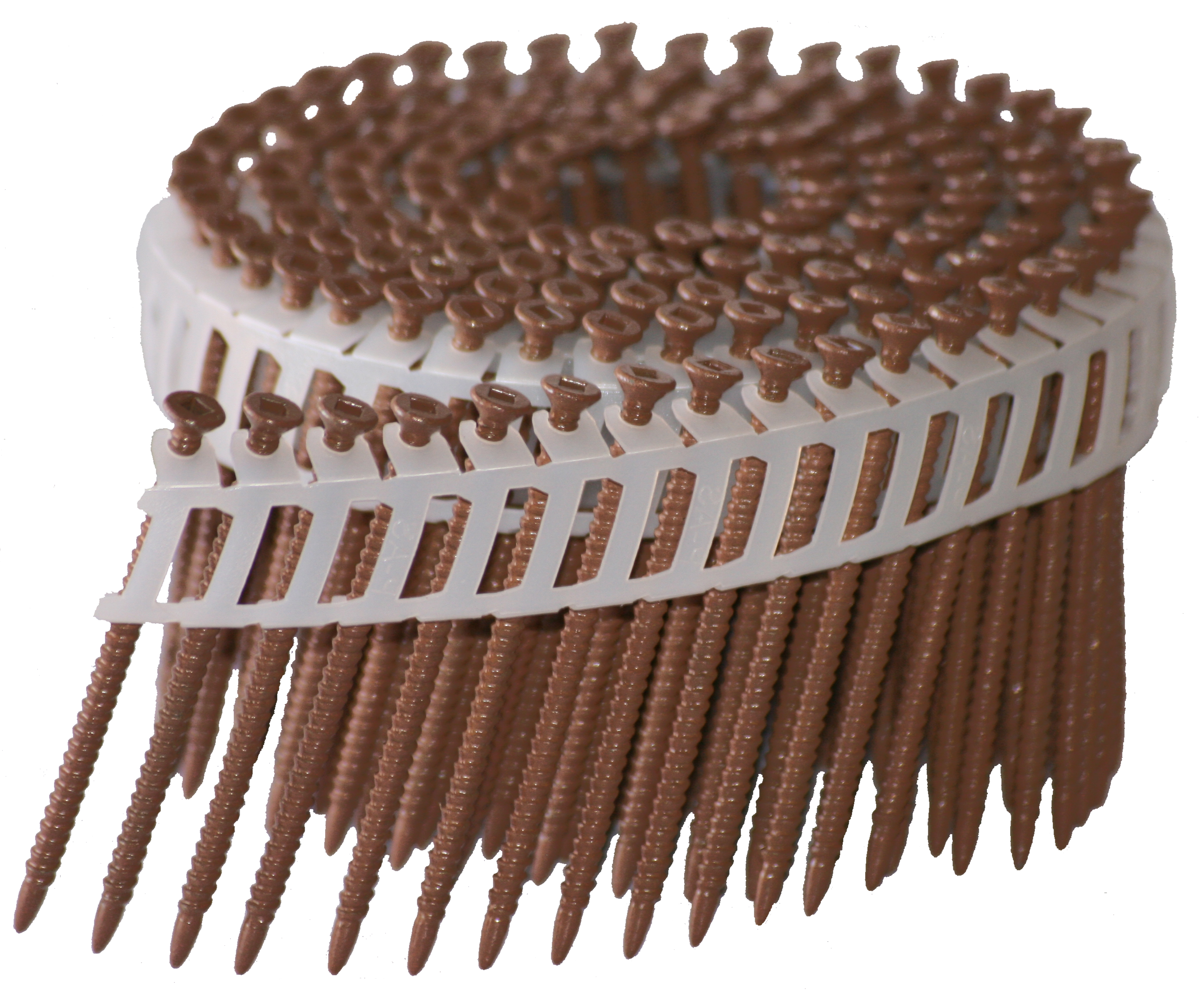

| HSNS212113PSQM | 1329 | 534 | 2-1/2" | 63.5 | 0.113 | 2.870 | #1 SQ | Mahogany |
| HSNS212113PSQW | 1329 | 534 | 2-1/2" | 63.5 | 0.113 | 2.870 | #1 SQ | Walnut |
