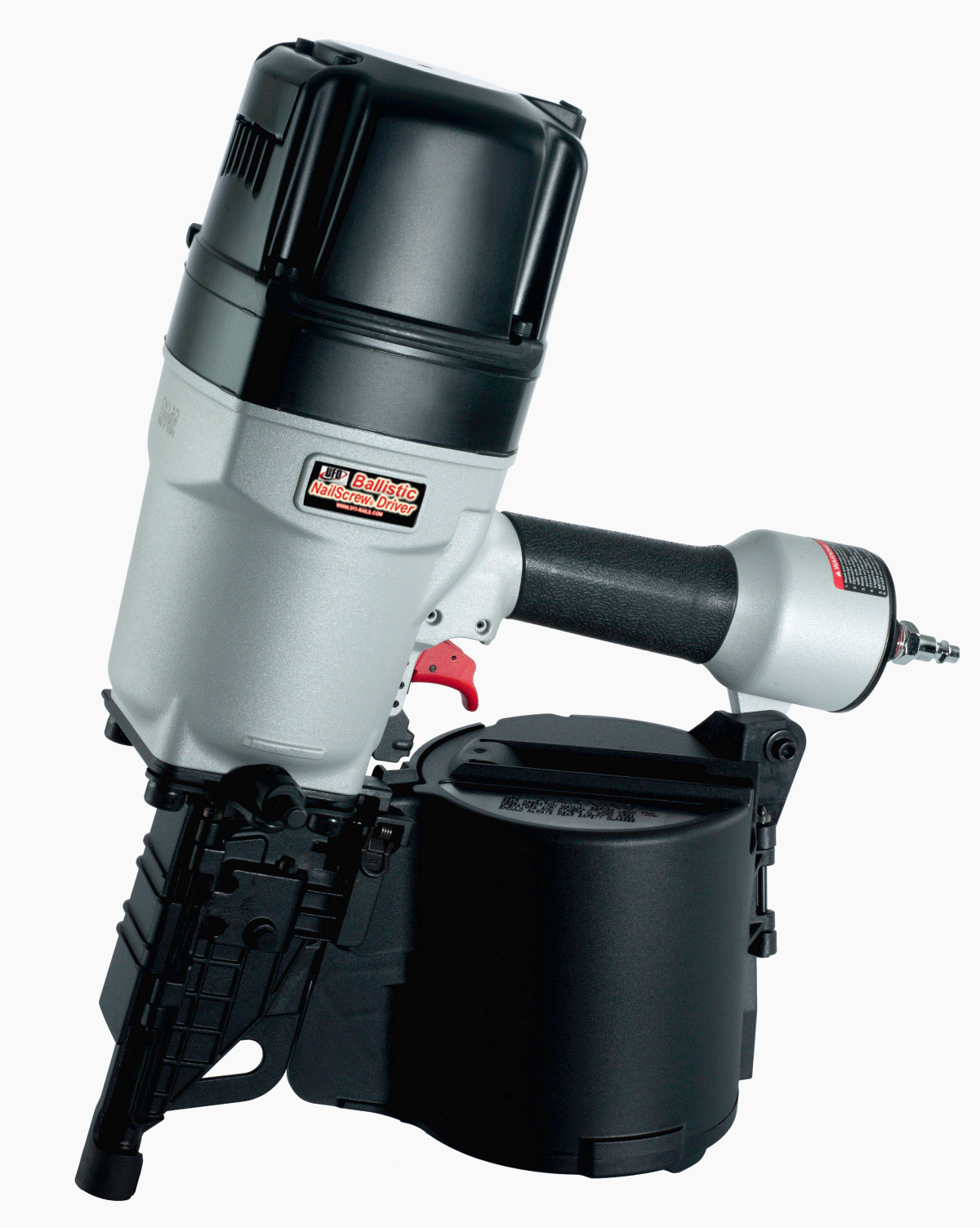

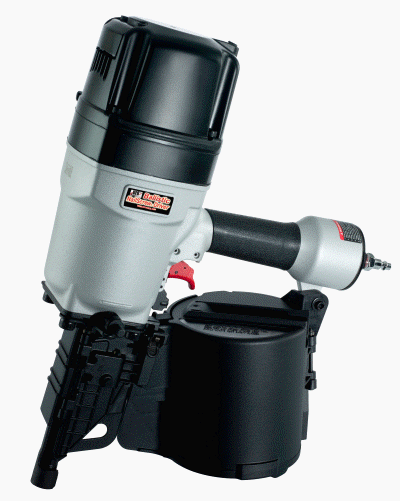

NSDCN130
15° Wire Coil Ballistic NailScrew®
Driver
| NSDCN130 Technical Data: | Applications: | |
|
Capacity: |

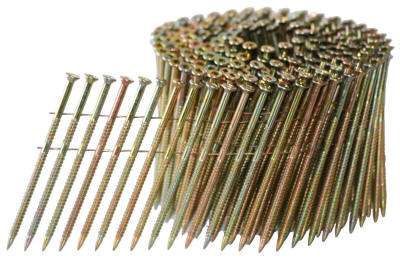

200 – 300 15°
Round Head Coil
BNS |
Crating/Pallets |
|
Nail Length: |
3" – 51/8"
(76.2 – 130.2
mm) |
Decking |
|
Shank Diameter: |
.120"
– .148"
(3.0 – 3.8 mm) |
Heavy Duty |
|
Head: |
.295" – .338"
(7.5 – 8.6 mm) |
Manufactured
Housing |
|
Operation
Pressure: |
70 – 120 PSI (5.0 – 7.5 Bar) | Subfloor |
|
Length: |
13.5" (342.9 mm) |
|
| Width: | 6" (152.4 mm) |
|
|
Height: |
18.8"
(477.5 mm) |
|
| Weight: | 12.7 lbs (5.76 kgs) |
|
