NSDCN64
15

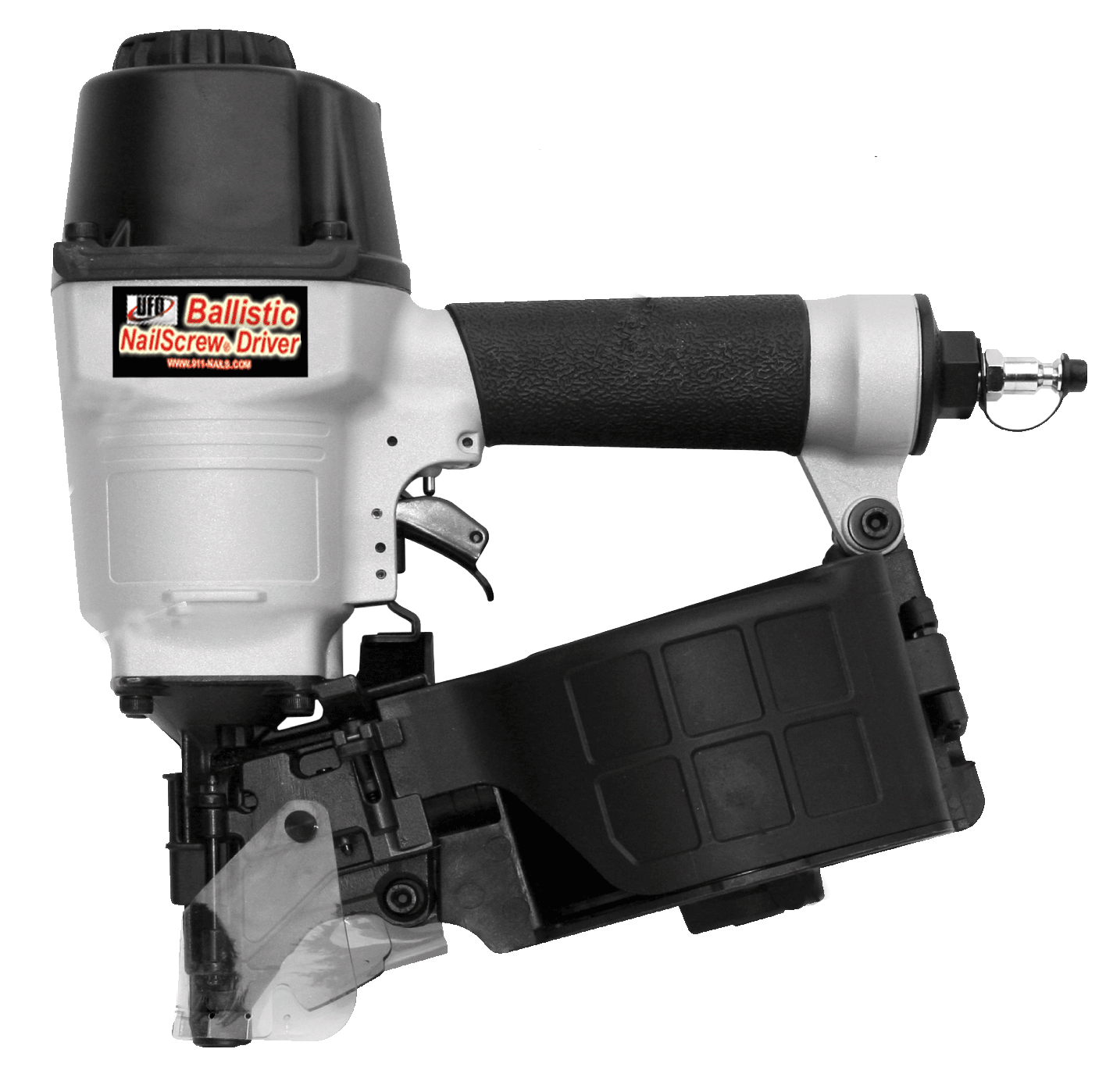

° Wire Coil Industrial Ballistic NailScrew® Driver


NSDCN64

YZ Flat Head   The NSDCN64 is a 2½” Coil Nailer designed for high speed operation.  It is well-balanced and powerful for heavy duty applications.  It has a magnesium housing that is light weight.  The magazine is tough nylon and easy to load.  The flat angle magazine allows toe-nailing. The high durability driver blade and bumper are specially designed for long life.
Schematic

NSDCN64 Technical Data: Applications:
Capacity: 250 – 350 15° Round Head Coil BNS Crating
Nail Length: 1" – 2½" (25.4 – 63.5 mm) Heavy Duty
Shank Diameter: .083"– .113" (2.1 – 2.5 mm) In Plant Construction
Head: .197" – .260" (5 – 6.6 mm) Pallets
Operation Pressure: 70 – 120 PSI (5.0 – 7.5 Bar)
Length: 12" (305 mm)
Width: 5.2" (136 mm)
Height: 12.4" (314 mm)
Weight:
7.5 lbs (3.4 kgs)


Back to Ballistic NailScrew® Drivers
