NSDCN65SP
15° Plastic Sheet & Trim Head 15° Wire Coil

Ballistic NailScrew
® Driver


NSDCN65SP

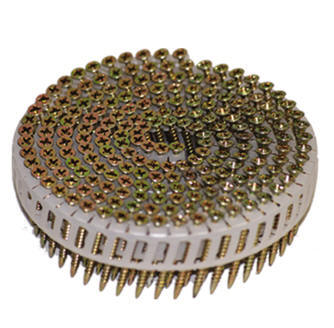

YZ Plastic Sheet Coil

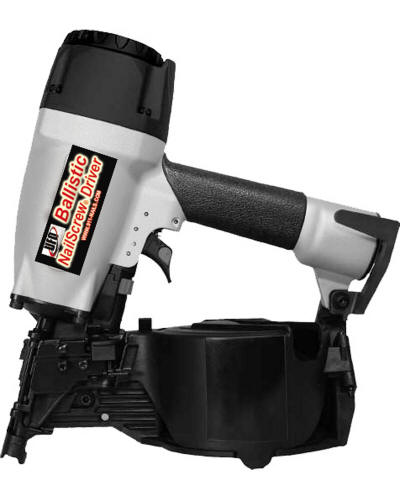

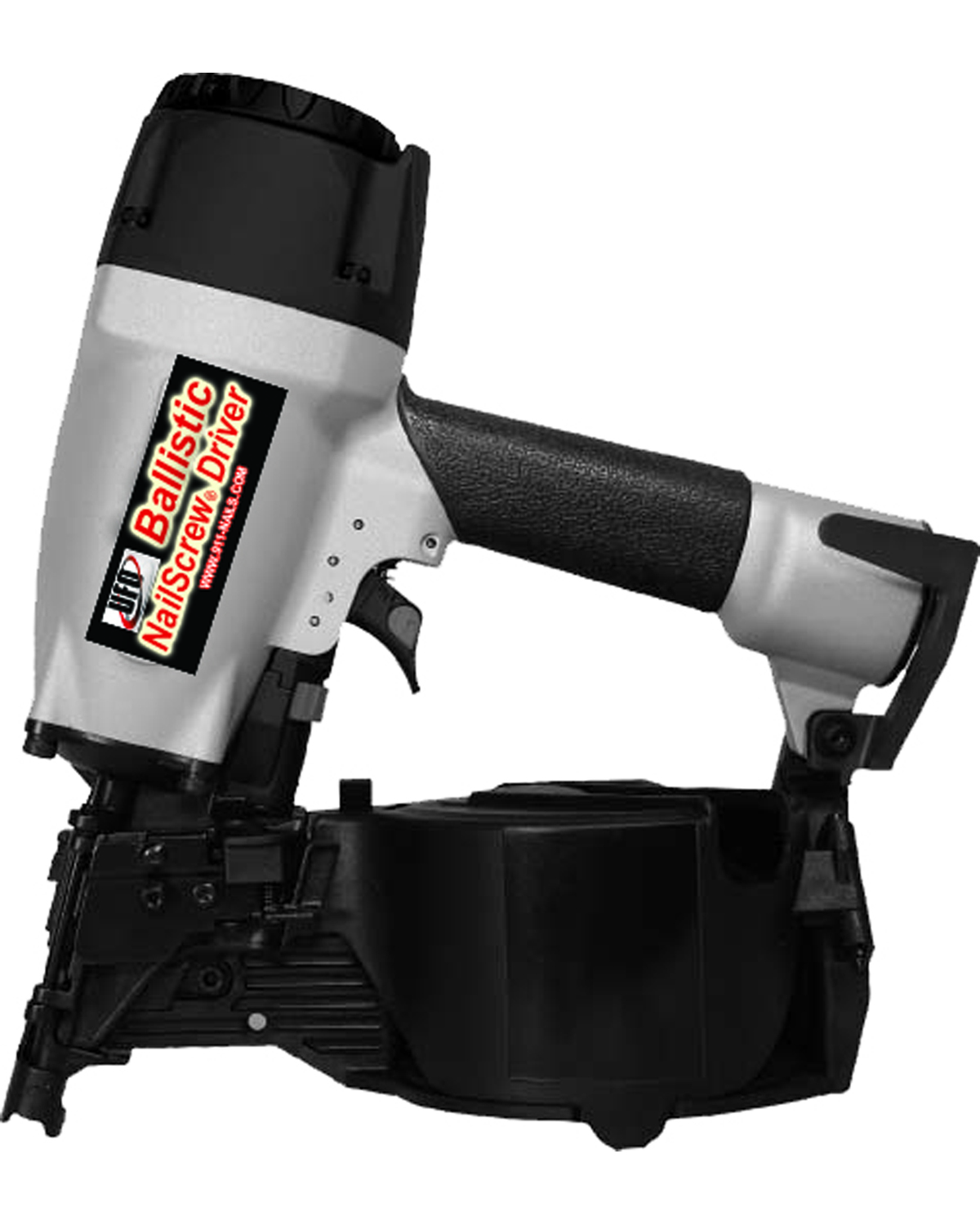

A heavy duty, coil fed, pneumatic nailer, using compressed air as power source. It is designed to drive 15° plastic sheet coil or 15° wire coil with full round head Ballistic NailScrews® or nails 1¼" to 2½" in length and 0.083" to .113" in diameter. The NSDCN65SP was specially designed for UFO’s Ballistic NailScrew® program with the ease of installation and durability in mind.  Features include a no-mar tip and adjustable depth of drive.  It has the power to easily drive color matched Ballistic NailScrews® into wood or composites into light gauge (12 to 16 ga) steel frame and stop the drive when it is flush.

Parts List

Instruction Manual

Schematic

NSDCN65SP Technical Data: Applications:
Capacity: 15° Round Head Coil BNS Crating
Nail Length: 1¼" – 2½" (31.75 – 63.5 mm) Fencing
Shank Diameter: .083"– .113" (2.1 – 2.9 mm) Metal/Steel Applications
Head: .197" – .236" (5.0 – 6.0 mm) Siding
Operation Pressure: 70 – 120 PSI (5.0 – 7.5 Bar) Wood to Metal Applications
Length: 12.25" (311.2 mm)
Width: 5" (124.3 mm)
Height: 12.5" (317.5 mm)
Weight: 4.6 lbs (2.1 kgs)

Back to Ballistic NailScrew® Drivers
