NSDCN70

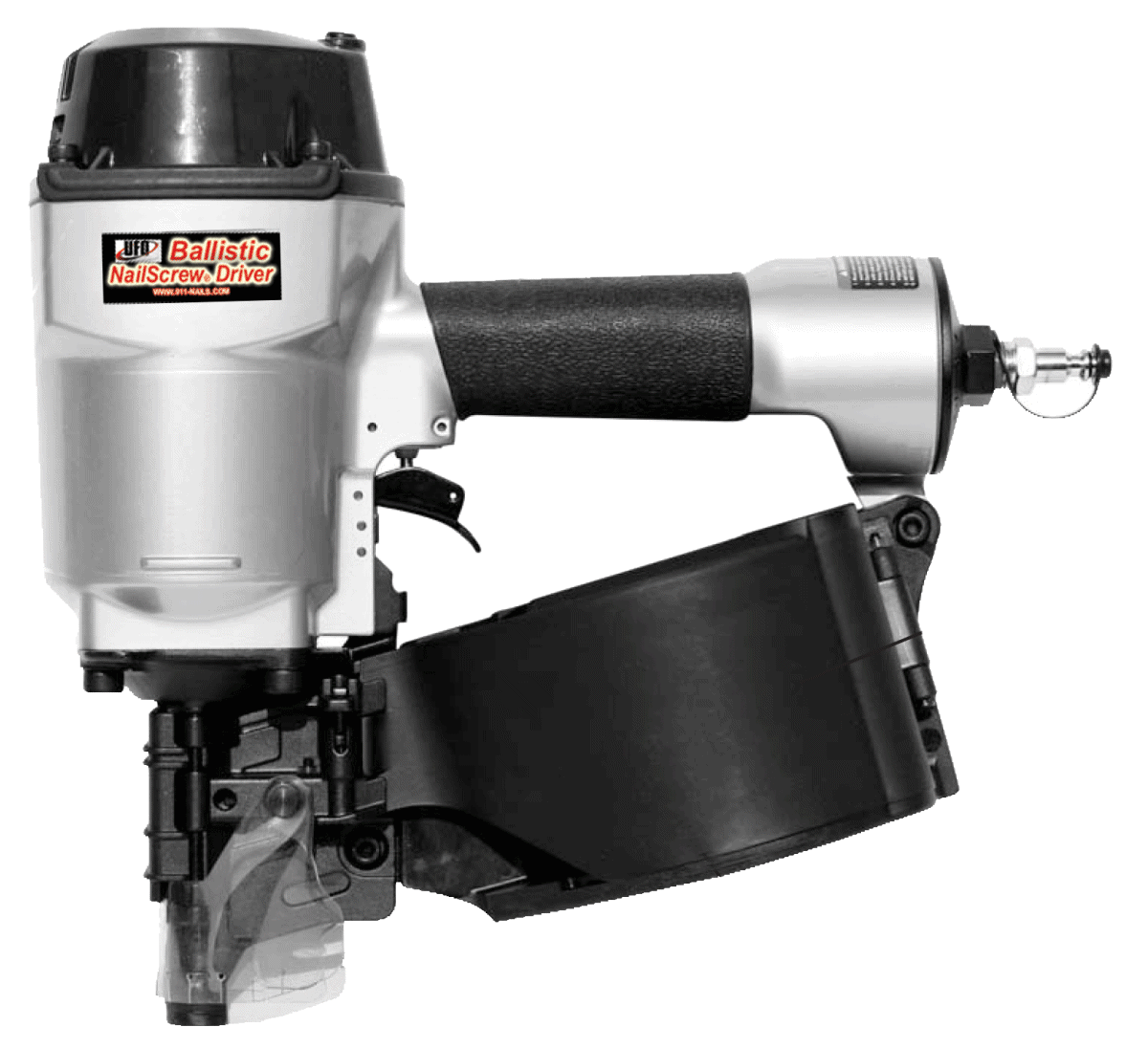

15° Wire Coil Industrial Ballistic NailScrew® Driver
NSDCN70


YZ Flat Head   The NSDCN70 is a 2¾" Coil Nailer designed for high speed operation.  It is well-balanced and powerful for heavy duty applications.  The magazine is tough nylon and easy to load.  The flat angle magazine allows toe-nailing.  The high durability driver blade and bumper are specially designed for long life.

NSDCN70 Technical Data: Applications:
Capacity: 250 – 300 15° Round Head Coil BNS Crating
Nail Length: 1¾" – 2¾" (44.5 – 69.9 mm) Heavy Duty
Shank Diameter: .090"– .113" (2.3 – 2.9 mm) In Plant Construction
Head: .224" – .276" (5.7 – 7.0 mm) Pallets
Operation Pressure: 70 –120 PSI (5.0 – 7.5 Bar)
Length: 13.3" (338.6 mm)
Width: 5” (124.3 mm)
Height: 12.5" (124.3 mm)
Weight: 7.9 lbs (3.58 kgs)
